All work

Personal AI observability

Claude usage dashboard

Tools / observability · May 2026 · First version (since rebuilt as v4)

Project

Discipline
Software
Timeline
May 2026Installed, debugged, themed and extended the same day
Role
Fork and customizationBug fix, re-theme, auto-rescan, system metadata
Category
Tools / observabilityPersonal AI usage analytics & cost monitoring
Upstream
phuryn/claude-usageThe open-source project the first version was forked from
Status
First version retiredRebuilt as versions 2 to 4; v4 is from June 2026

Tools

  • Python 3 (stdlib)
  • SQLite
  • http.server
  • Chart.js
  • JSONL parsing
  • HTML / CSS

Knowing what I'm actually using

I use Claude Code most days — sometimes for hours. Without observability, I had no idea how many tokens I was burning, which projects were costing the most, or whether my workflow was efficient. So I forked the open-source phuryn/claude-usage dashboard, fixed the bug that left it rendering blank, re-themed it under the FORGE name and set it to rescan every 30 seconds so it updates as I work. That was the first version. Versions 2 to 4 are rebuilds of my own; this page and its screenshots show the first.

Version 4, from June 2026, is one Python file: 1,072 lines, standard library only, with live updates over server-sent events.

The dashboard is Python with zero dependencies — just stdlib (sqlite3, http.server, pathlib) and Chart.js from a CDN. It reads Claude Code's local JSONL transcripts at ~/.claude/projects/, parses them into a SQLite database at ~/.claude/usage.db, then serves an HTML dashboard on localhost:8080 with token usage, cost estimates, model breakdowns, hourly distribution, and session history.

What it showed on 10 May 2026: 1,216 turns across 30 sessions, 1.09M output tokens, 86.34M cache reads, ~$72 in API-equivalent cost over the last 30 days. Top project by token volume: Downloads/Claude_Coding (where most of my dev work happened).

What I contributed

  • Bug fix — dashboard.py referenced an undeclared variable cutoff in the hourly filter. The error got swallowed by an outer try/catch in loadData(), killing all renders silently — blank stats row and 4 empty chart cards even though the database had real data. Single-line fix: changed the filter to use the same start/end variables as the daily filter.
  • Dark theme retrofit — rebuilt the color palette: a dark navy background, a gold accent and steel blue.
  • Header rebrand — "Claude Code Usage Dashboard" → FORGE / Claude Usage in the header strip, aligned with the FORGE brand.
  • Auto-rescan — the 30-second auto-refresh rescans the logs, then loads data, so new Claude session turns appear within about 30 seconds.
  • System metadata — the header meta strip shows the database size, last scan time, total turns and sessions, data span, unique projects, JSONL file count and model count.

The full data flow is: Claude Code writes JSONL to ~/.claude/projects/ on every session (always, regardless of whether the dashboard is running). The scanner parses JSONL into a SQLite database. The dashboard reads from SQLite, not from JSONL. Cowork sessions aren't captured because they're server-side and don't write local logs.

One nuance worth noting: the cost estimates use Anthropic's API pricing as of April 2026. Pro and Max subscriptions are flat-fee, so the dollar figure represents "what the API would cost" rather than actual spend. Useful for understanding usage patterns, not for billing. I treat it as a relative metric — am I burning more this week than last? Which project is the heaviest?

First version — screenshots

Screenshots from the first version running on localhost:8080 on 10 May 2026 — dark theme retrofit, auto-rescan every 30 seconds, reading from ~/.claude/projects/*.jsonl.

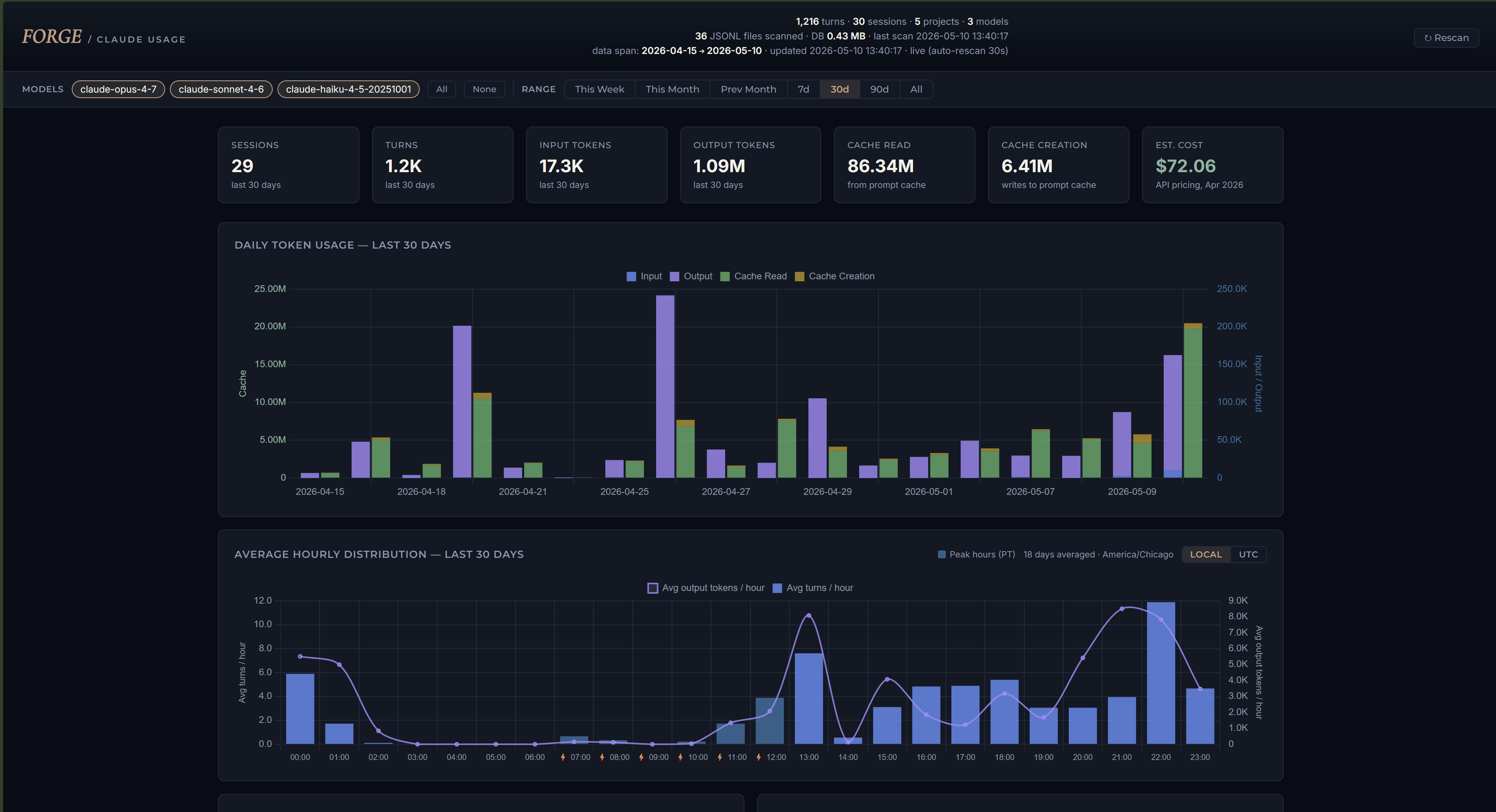

FORGE / Claude Usage dashboard — full overview with stats, daily tokens, and hourly distribution
Full dashboard view — 1,216 turns · 30 sessions · 5 projects · 3 models · $72.06 est. cost (30d)

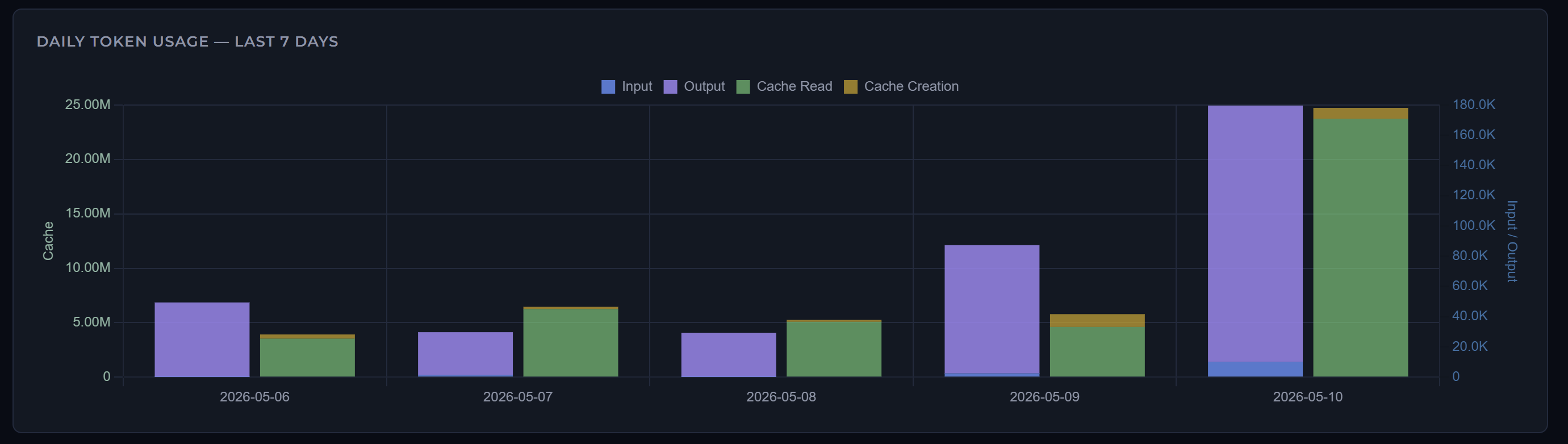

Daily token usage chart — last 7 days, stacked bars for input, output, cache read, and cache creation
Daily token usage · last 7 days — cache reads dominate output tokens: prompt-cache hits on repeated context

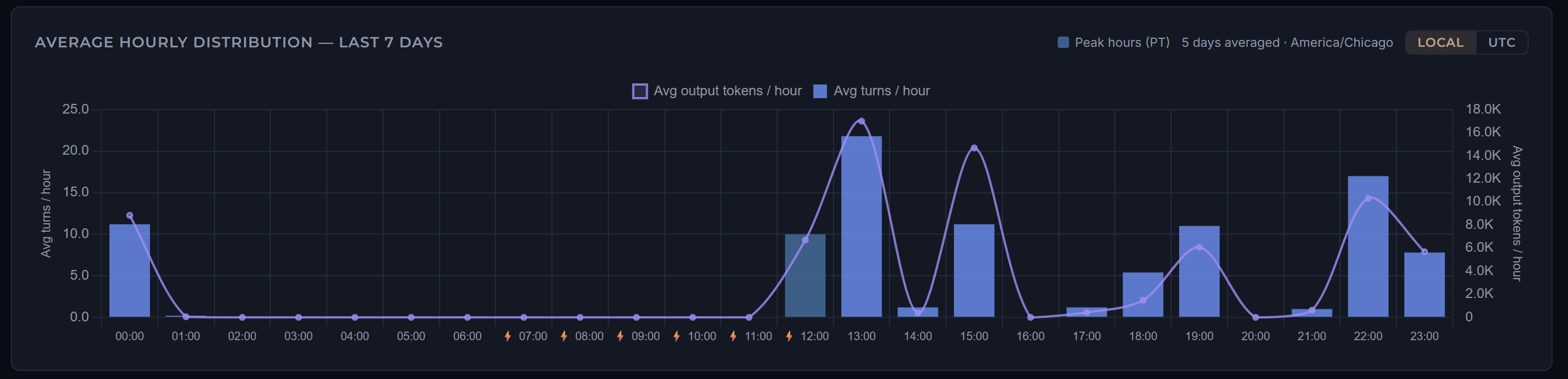

Average hourly distribution chart — turns and output tokens by hour of day, with peak hours highlighted
Hourly distribution · last 7 days — 13:00 and 22:00 CT spikes: heaviest usage windows

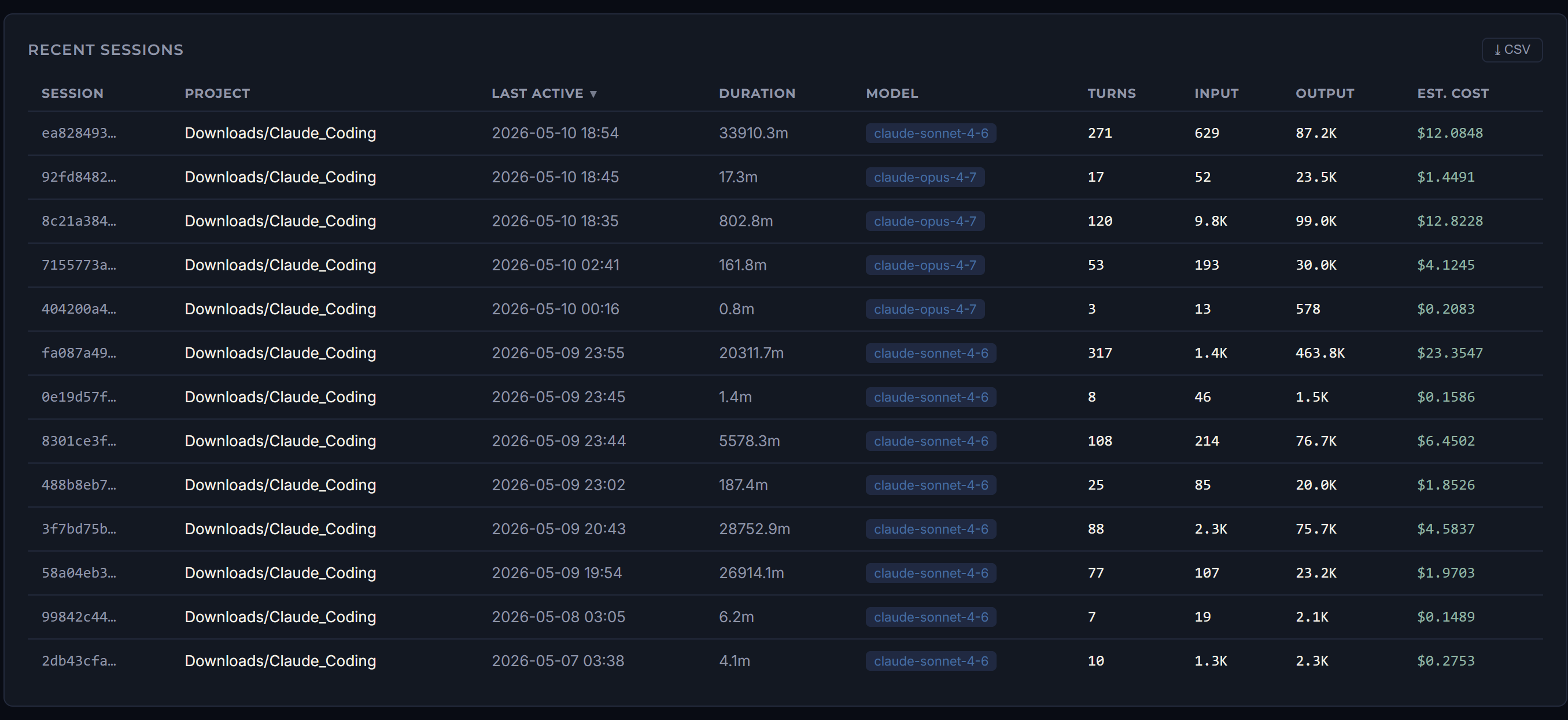

Recent sessions table — session ID, project, last active timestamp, duration, model, turns, tokens, and cost
Recent sessions — per-session rows with model used and API-equivalent cost

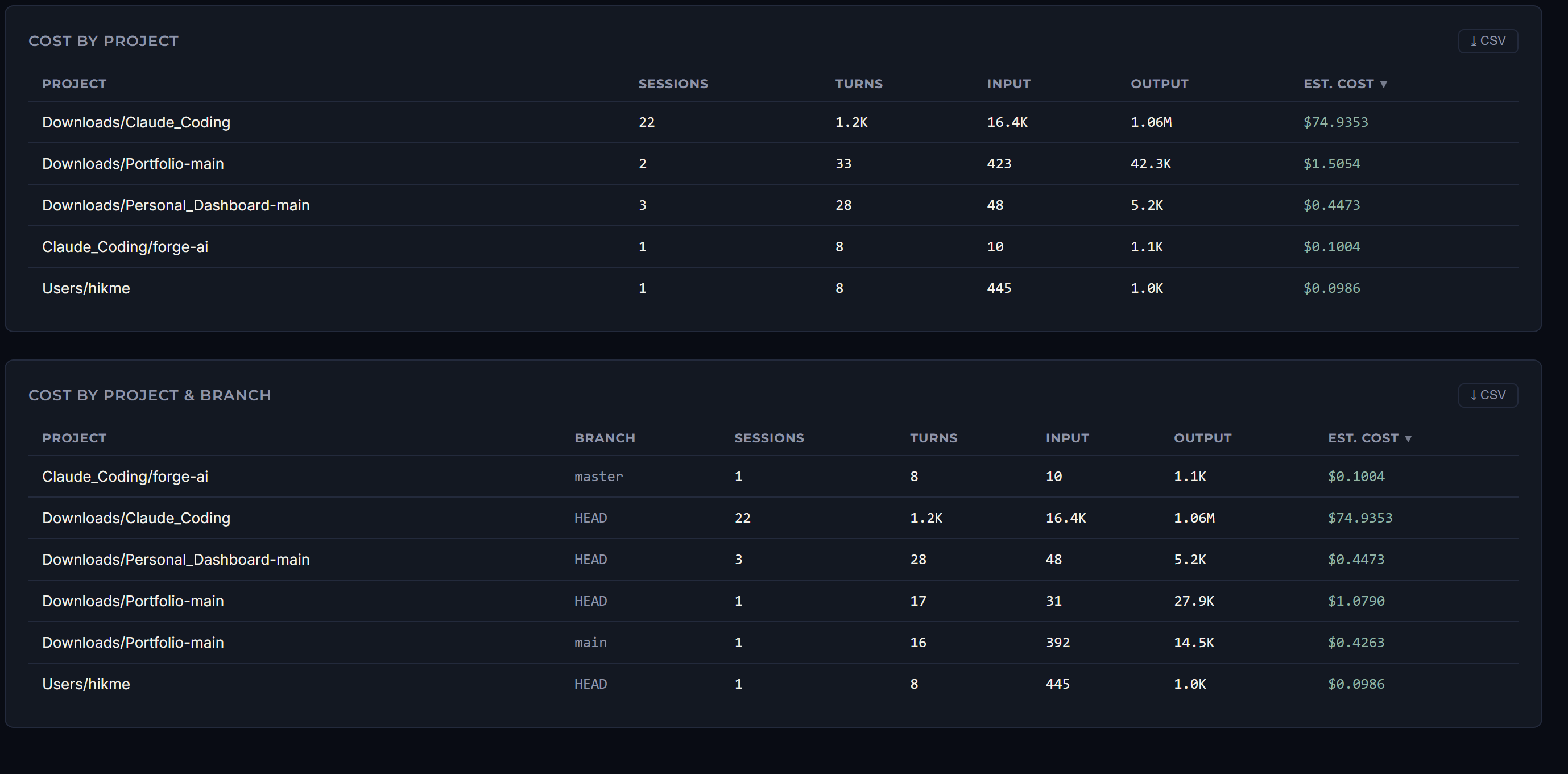

Cost by project and cost by project and branch tables — Claude_Coding leads estimated cost, with HEAD vs main branch breakdown
Cost by project & branch — Claude_Coding (22 sessions, 1.06M output tokens) is the largest; Portfolio-main, Personal_Dashboard and two smaller projects fill the rest. The branch view splits HEAD from main so I can see which branch I'm actually burning tokens on.

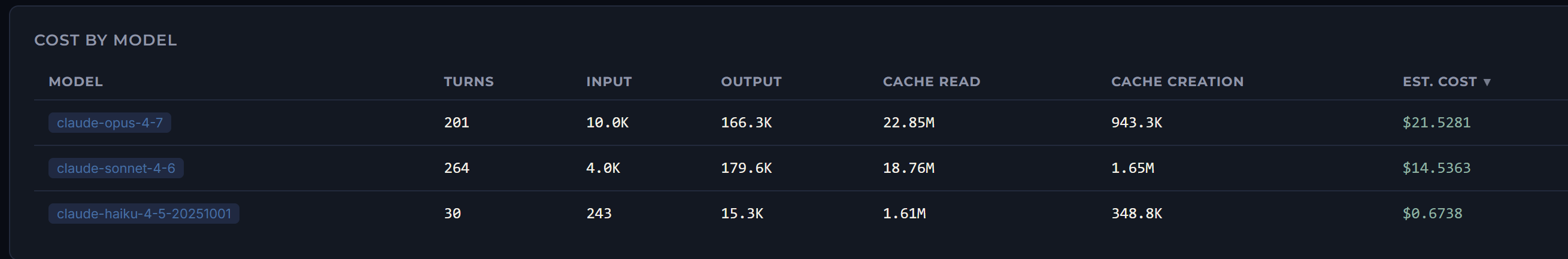

Cost by model table — Opus, Sonnet, and Haiku with turns, tokens, and estimated API cost
Cost by model — Opus, Sonnet, Haiku

First version, May 2026 · rebuilt as versions 2 to 4 since
